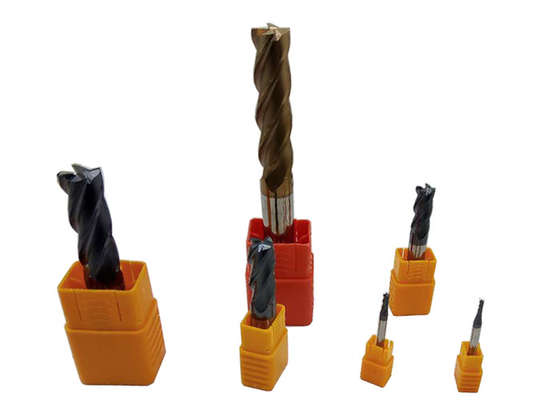

Durable And Tailor Size High Precision Tungsten Carbide End Mill

Durable and practical.

1-4 flutes design provides small chip loads and quicker removal.

Application Material:Wood,plastic,Aluminum plate etc.

Suitable for DIY, Home and General Building/Engineering Using.

Specification

Blade diameter range from 0.5mm-10mm, helix angle 35°, hardness: HRC55, suitable for medium and high speed; Features: micro-particle cemented carbide material, WC=88%, CO=12%, TRC>4300N/m2, particle size: 0.5 Um, ideal for carbon steel, alloy steel, stainless steel cast iron mold

HRC55 2 flute, 3 flute, 4 flute flattened carbide end mill

2 flute square end mill

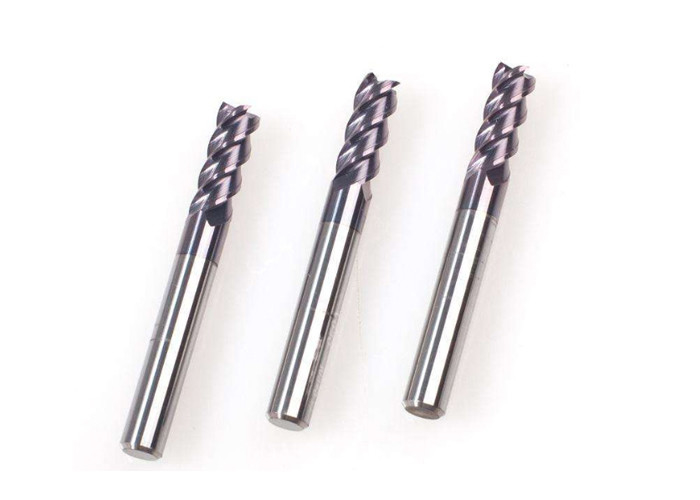

3 flute square end mill

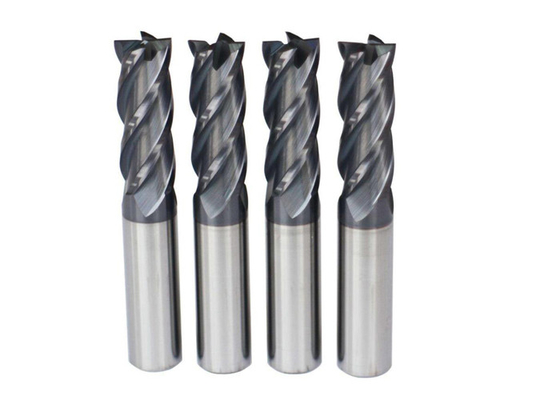

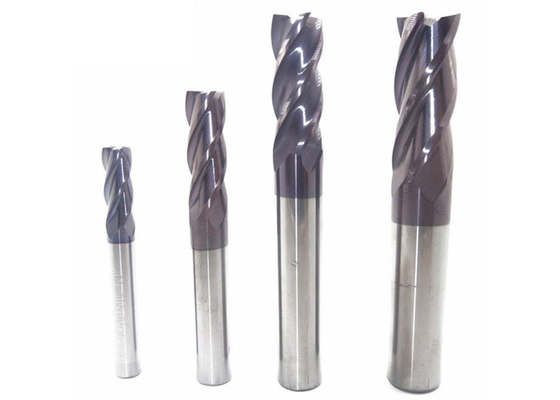

4 flute square end mill

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

End mill cutter Features:

• Tungsten Carbide,Solid Carbide,Cemented Carbide
• Typically 1-4 flutes
• Standard & high performance offering

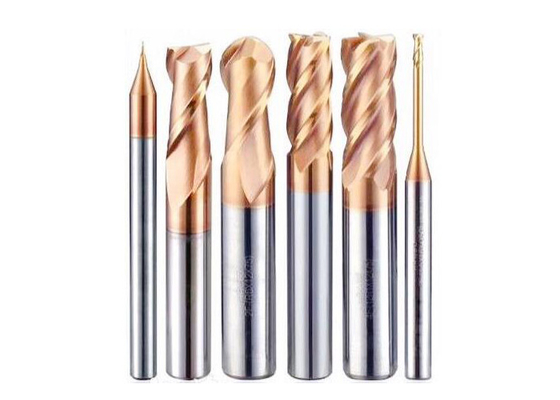

• Square,Ball,Radius or Chamfer Cutting Ends
• Standard,Stub Length,Extra Long,Long Reach Designs
• Metric & Inch Based Tools

Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc
