Product Details:
Payment & Shipping Terms:
|
Features: | Excellent Wear Resistance & High Toughness | Product Name: | Tungsten Carbide Rod |
---|---|---|---|
Alloy Specification: | YG6X/YG8/YL10.2 ETC... | Particle: | 0.2-1.7um |
Material: | 100% Virgin Carbide Material | Shape: | Round / Customized |
High Light: | cemented carbide rods,tungsten carbide wear parts |
Cemented carbide is a hard material used in machining tough materials such as carbon steel or stainless, as well as in situations where other tools would wear away, such as high-quantity production runs. Most of the time, carbide will leave a better finish on the part, and allow faster machining.Carbide tools can also withstand higher temperatures than standard high speed steel tools
1. High accuracy with long lifespan
2. Hip sintered, good performance
3. Various sizes and full types available
4. Products can be customized upon requirement
5. Applicable in make the drill bits, end-mills, reamers, automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, it can be used for making of cemented carbide stamping head, Core bar and perforatioin tools.
Our Advantages:
1. 100% raw material tungsten carbide.
2. Sintered in HIP furnace
3. ISO9001 certificate.
4. Fully adopted in advance technology and equipment.
5. Professional manufacturer for tungsten carbide items for many years experience.
6. Quality Control System and strict inspection.
7. Better online service and after-sale service
8. OEM and ODM are accepted as well.

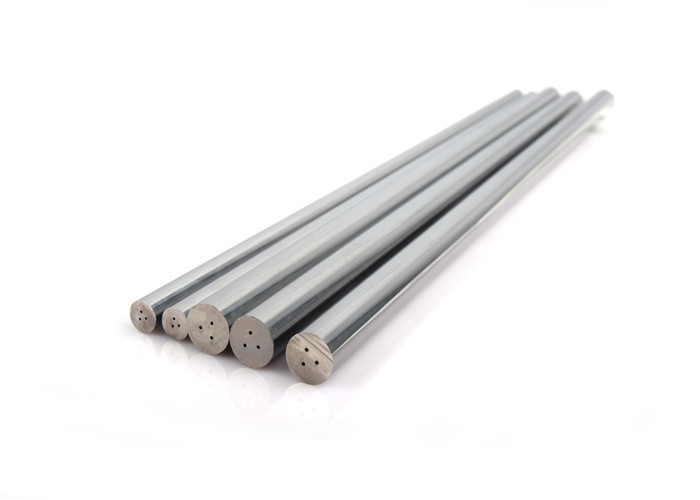

Specification of the Tungsten Carbide Rod with hole
Outer diameter |
Outer diameter tolerance |
Inner hole size |
Inner hole tolerance |
Concentricity |
Length |
Length tolerance |
||
2.5 |
+0.20 |
0.3 | ±0.10 | 0.2 | 330 | 0~+5.0 | ||
4.0 | 1.0 | ±0.15 | 330 | 0~+5.0 | ||||
6.0 | 330 | 0~+5.0 | ||||||
8.0 | 1.5 | 330 | 0~+5.0 | |||||
10.0 |
+0.30 |
2.0 | ±0.20 | 0.25 | 330 | 0~+5.0 | ||
12.0 | 330 | 0~+5.0 | ||||||
14.0 | 330 | 0~+5.0 | ||||||
16.0 | 330 | 0~+5.0 | ||||||
18.0 |
+0.40 |
3.0 | ±0.25 | 0.30 | 330 | 0~+5.0 | ||
20.0 | 330 | 0~+5.0 | ||||||
22.0 | 330 | 0~+5.0 | ||||||
24.0 | 4.0 | ±0.30 | 330 | 0~+5.0 | ||||
26.0 | 5.0 | ±0.35 | 330 | 0~+5.0 | ||||
28.0 | 330 | 0~+5.0 | ||||||
30.0 | 330 | 0~+5.0 |
~ Customized Tungsten carbide products are available!
