HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing

China HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing supplier
HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing supplier HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing supplier HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing supplier HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing supplier HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing supplier

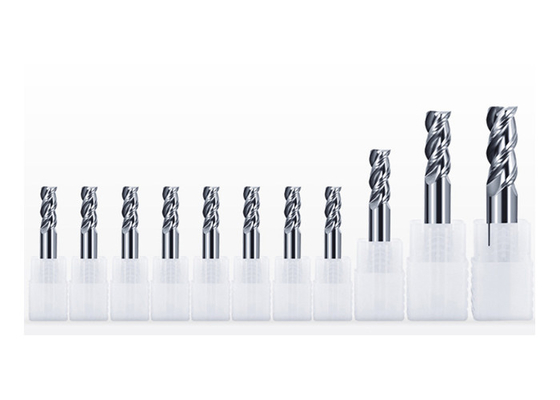

Large Image :  HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing

Product Details:

Place of Origin: China
Brand Name: Jin Tai Pai
Certification: ISO SGS
Model Number: D1-D20 customized dimension available

Payment & Shipping Terms:

Minimum Order Quantity: 1 - 1000 pieces & sample order available
Price: Negotiable, depends on carbide grade and quantity.
Packaging Details: Packed in plastic tube or as customers' requirments.
Delivery Time: 7-25 days, depends on order
Payment Terms: Western Union, L/C, T/T,
Supply Ability: 20 Ton/Tons per Month
Contact Now
Detailed Product Description
Features: High In Toughness Product Name: Carbide End Mill, Flat, Radius And Ballnose End Mill
Material: Carbide, Tungsten Carbide, Cemented Carbide Flute: 2/4
Application: Steel/Stainless/aluminium Coating: AlTiN
Hardness: HRC 48 53 58 63
High Light:

carbide ball end mill

,

tungsten carbide milling cutters

Name: Tungsten steel ball end mill HRC45 degrees

Model: ball end mill

Material: tungsten steel

Number of blades: 2 flute and 4 flute

Processing hardness: HRC45 degrees

Processing materials: steel, alloy steel, pre-hard mold steel, other high-hard steel



Features

It can be widely used in profiling, etc.

Fine-grained tungsten carbide bar is coated with TiAIN and featured with high toughness, high wear resistance

It can directly carry out roughing to finishing of heat treatment molds, reduce the number of tool changes, improve machine efficiency and reduce the mold making process.

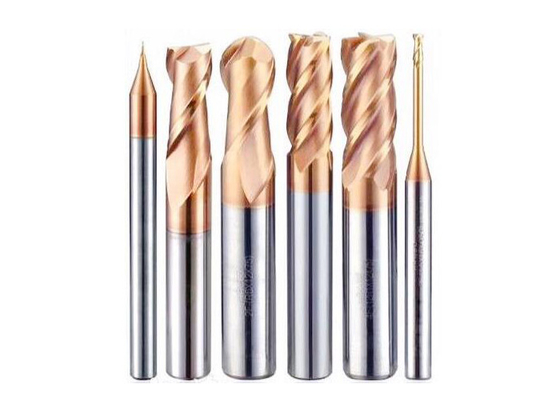

HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing 0



HRC45 2 flute 4 flute ball carbide end mill

Type Blade diameter Blade length Shank diameter Total length
R0.75×3×4D×50L×2F 1.5 3 4 50
R1.0×4×4D×50L×2F 2 4 4 50
R1.25×5×4D×50L×2F 2.5 5 4 50
R1.5×6×4D×50L×2F 3 6 4 50
R1.75×7×4D×50L×2F 3.5 7 4 50
R2.0×8×4D×50L×2F 4 8 4 50
R2.5×10×6D×50L×2F 5 10 6 50
R3.0×12×6D×50L×2F 6 12 6 50
R3.5×14×8D×60L×2F 7 14 8 60
R4.0×16×8D×60L×2F 8 16 8 60
R4.5×18×10D×75L×2F 9 18 10 75
R5.0×20×10D×75L×2F 10 20 10 75
R5.5×22×12D×75L×2F 11 22 12 75
R6.0×24×12D×75L×2F 12 24 12 75
R7.0×28×14D×100L×2F 14 28 14 100
R8.0×32×16D×100L×2F 16 32 16 100
R9.0×36×18D×100L×2F 18 36 18 100
R10×40×20D×100L×2F 20 40 20 100



HRC45 4 flute square end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×3×4D×50L×4F 1 3 4 50
1.5×4×4D×50L×4F 1.5 4 4 50
2.0×6×4D×50L×4F 2 6 4 50
2.5×8×4D×50L×4F 2.5 8 4 50
3.0×8×4D×50L×4F 3 8 4 50
3.5×10×4D×50L×4F 3.5 10 4 50
4.0×11×4D×50L×4F 4 11 4 50
3.0×8×6D×50L×4F 3 8 6 50
3.5×10×6D×50L×4F 3.5 10 6 50
4.0×11×6D×50L×4F 4 11 6 50
4.5×13×6D×50L×4F 4.5 13 6 50
5.0×13×6D×50L×4F 5 13 6 50
5.5×13×6D×50L×4F 5.5 13 6 50
6.0×15×6D×50L×4F 6 15 6 50
7.0×16×8D×60L×4F 7 16 8 60
8.0×20×8D×60L×4F 8 20 8 60
9×20×10D×75L×4F 9 20 10 75
10×25×10D×75L×4F 10 25 10 75
11×25×12D×75L×4F 11 25 12 75
12×30×12D×75L×4F 12 30 12 75
14×35×14D×100L×4F 14 35 14 100
16×40×16D×100L×4F 16 40 16 100
18×45×18D×100L×4F 18 40 18 100
20×45×20D×100L×4F 20 45 20 100



HRC45 4 flute long blade end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×7×4D×50L×4F 1 7 4 50
1.5×9×4D×50L×4F 1.5 9 4 50
2.0×12×4D×50L×4F 2 12 4 50
2.5×12×4D×50L×4F 2.5 12 4 50
3.0×15×6D×60L×4F 3 15 6 60
3.5×15×6D×60L×4F 3.5 15 6 60
4.0×20×6D×75L×4F 4 20 6 75
4.5×20×6D×75L×4F 4.5 20 6 75
5.0×25×6D×75L×4F 5 25 6 75
5.5×25×6D×75L×4F 5.5 25 6 75
6.0×30×6D×75L×4F 6 30 6 75
7.0×30×8D×100L×4F 7 30 8 100
8.0×40×10D×100L×4F 8 40 10 100
9.0×40×10D×100L×4F 9 40 10 100
10×40×12D×100L×4F 10 40 12 100
11×40×12D×100L×4F 11 40 12 100
12×50×14D×150L×4F 12 50 14 150
14×50×14D×150L×4F 14 50 14 150
16×60×16D×150L×4F 16 60 16 150
18×70×18D×150L×4F 18 70 18 150
20×70×20D×150L×4F 20 70 20 150



HRC45 3 flute, 4 flute long blade coated end mill

Type Blade diameter Blade length Shank diameter Total length
1.0×7×4D×50L×4F 1 7 4 50
1.5×9×4D×50L×4F 1.5 9 4 50
2.0×12×4D×50L×4F 2 12 4 50
2.5×12×4D×50L×4F 2.5 12 4 50
3.0×15×6D×60L×4F 3 15 6 60
3.5×15×6D×60L×4F 3.5 15 6 60
4.0×20×6D×75L×4F 4 20 6 75
4.5×20×6D×75L×4F 4.5 20 6 75
5.0×25×6D×75L×4F 5 25 6 75
5.5×25×6D×75L×4F 5.5 25 6 75
6.0×30×6D×75L×4F 6 30 6 75
7.0×30×8D×100L×4F 7 30 8 100
8.0×40×8D×100L×4F 8 40 8 100
9.0×40×10D×100L×4F 9 40 10 100
10×40×10D×100L×4F 10 40 10 100
11×40×12D×100L×4F 11 40 12 100
12×50×12D×100L×4F 12 50 12 100
14×50×14D×150L×4F 14 50 14 150
16×60×16D×150L×4F 16 60 16 150
18×70×18D×150L×4F 18 70 18 150
20×70×20D×160L×4F 20 70 20 160



HRC45 4 flute long shank coated end mill

Type Blade diameter Blade length Shank diameter Total length
6.0×16×6D×75L×4F 6 16 6 75
6.0×16×6D×100L×4F 6 16 6 100
8.0×20×8D×75L×4F 8 20 8 75
8.0 ×20×8D×100L×4F 8 20 8 100
10×25×10D×100L×4F 10 25 10 100
10×25×10D×150L×4F 10 25 10 150
12×30×12D×100L×4F 12 30 12 100
12×30×12D×150L×4F 12 30 12 150



HRC45 2 flute coated end mill

Type Blade diameter Blade length Shank diameter Total length
R0.75×3×4D×50L×2F 1.5 3 4 50
R1.0×4×4D×50L×2F 2 4 4 50
R1.25×5×4D×50L×2F 2.5 5 4 50
R1.5×6×4D×50L×2F 3 6 4 50
R1.75×7×4D×50L×2F 3.5 7 4 50
R2.0×8×4D×50L×2F 4 8 4 50
R2.5×10×6D×50L×2F 5 10 6 50
R3.0×12×6D×50L×2F 6 12 6 50
R3.5×14×8D×60L×2F 7 14 8 60
R4.0×16×8D×60L×2F 8 16 8 60
R4.5×18×10D×75L×2F 9 18 10 75
R5.0×20×10D×75L×2F 10 20 10 75
R5.5×22×12D×75L×2F 11 22 12 75
R6.0×24×12D×75L×2F 12 24 12 75
R7.0×28×14D×100L×2F 14 28 14 100
R8.0×32×16D×100L×2F 16 32 16 100
R9.0×36×18D×100L×2F 18 36 18 100
R10×40×20D×100L×2F 20 40 20 100



Applications

1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc

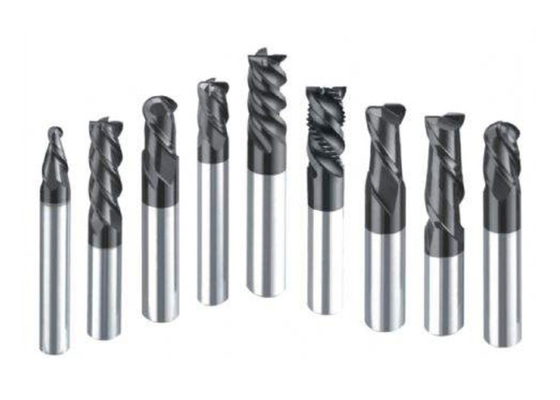

HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing 1

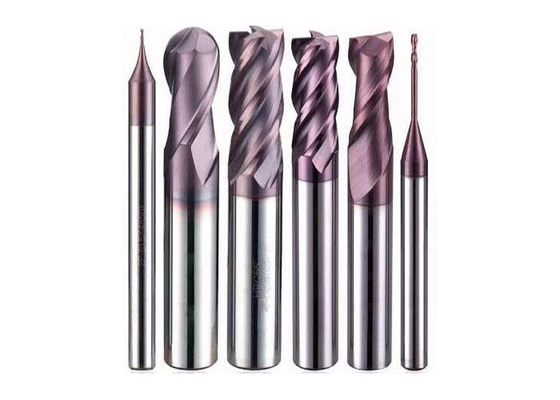

HRC45 Degrees AlTiN Coating Carbide Ball Nose End Mill for Steel Iron and Aluminum Processing 2
