Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling

I'm Online Chat Now

Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling

China Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling supplier
Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling supplier Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling supplier Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling supplier Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling supplier Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling supplier

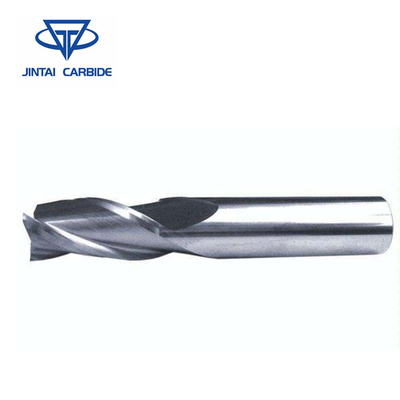

Large Image :  Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling

Product Details:

Place of Origin: China
Brand Name: Jin Tai Pai
Certification: SGS ISO certificated
Model Number: D1-D20, customized dimension available

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable, sample order acceptable
Price: Negotiable, depends on carbide grade and quantity.
Packaging Details: Packed in plastic tube or as your requirments.
Delivery Time: 7-25 days, depends on order
Payment Terms: Western Union, L/C, T/T,
Supply Ability: 20000 pieces per Month
Contact Now
Detailed Product Description
Product Name: Wholesale Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter/End Mills/ Router Bit For Milling Material: Tungsten Carbide
Flute: 2/3/4 Spiral Angle: 30 Degree
Machine Type: Milling Machine Precision: Durable
High Light:

tungsten carbide milling cutters

,

carbide square end mill

Wholesale Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter/End Mills/ Router Bit For Milling

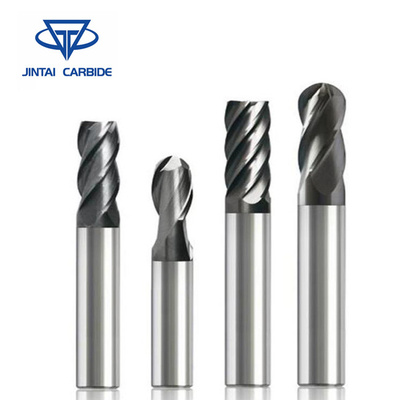

Milling cutters/end mills are broadly divided into:

1. Square end mill: finish milling or rough milling, milling grooves, removing a large number of blanks, small-area horizontal plane or contour finishing;

2. Ball end milling cutter/end mill: semi-finishing and finishing of curved surface; the small blade can finish milling small chamfer of steep surface/straight wall.

3, Radius end mill: rough milling when the surface change is small, the small concave area is less, and in relatively flat area.

4. Taper end mills: with chamfer, it can be used for rough milling to remove a large number of blanks, and it can also be fine-milled with a small chamfer on the flat surface (relative to the steep surface).

5. Dill

6. Thread mill

7. Formed cutter

Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling 0

Features:

1. The use of new ultra-fine particles of tungsten steel material, with high wear resistance and strength, exclusive high-speed cutting applications for all-round milling cutter.

2. The blade is covered with a coating, the high-speed roughing of the hot material can be finely processed to reduce the number of tool changes.



Specifications



HRC 45 solid carbide end mill

Blade diameter range from 0.5mm to 10 mm, spiral angle 30 degree, hardness HRC 45.

Fine tungsten carbide, WC=90%,CO=10%,TRC>3800N/㎡, ideal for carbon steel, alloy steel and iron mold materials.



HRC 45 2 flute, 3 flute and 4 flute square end mill



2-flute square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0x3x4Dx50Lx2F 1 3 4 50
1.5x4x4Dx50Lx2F 1.5 4 4 50
2.0x6x4Dx50Lx2F 2 6 4 50
2.5x8x4Dx50Lx2F 2.5 8 4 50
3.0x3x4Dx50Lx2F 3 8 4 50
3.5x10x4Dx50Lx2F 3.5 10 4 50
4.0x11x4Dx50Lx2F 4 11 4 50
3.0x8x6Dx50Lx2F 3 8 6 50
3.5x10x6Dx50Lx2F 3.5 10 6 50
4.0x11x6Dx50Lx2F 4 11 6 50
4.5x13x6Dx50Lx2F 4.5 13 6 50
5.0x13x6Dx50Lx2F 5 13 6 50
5.5x13x6Dx50Lx2F 5.5 13 6 50
6.0x15x6Dx50Lx2F 6 15 6 50
7.0x16x8Dx60Lx2F 7 16 8 60
8.0x20x8Dx60Lx2F 8 20 8 60
9x20x10Dx75Lx2F 9 20 10 75
10x25x10Dx75Lx2F 10 25 10 75
11x25x12Dx75Lx2F 11 25 12 75
12x30x12Dx75Lx2F 12 30 12 75
14x35x14Dx100Lx2F 14 35 14 100
16x40x16Dx100Lx2F 16 40 16 100
18x45x18Dx100Lx2F 18 40 18 100
20x45x20Dx100Lx2F 20 45 20 100



3-flute square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0x3x4Dx50Lx3F 1 3 4 50
1.5x4x4Dx50Lx3F 1.5 4 4 50
2.0x6x4Dx50Lx3F 2 6 4 50
2.5x8x4Dx50Lx3F 2.5 8 4 50
3.0x3x4Dx50Lx3F 3 8 4 50
3.5x10x4Dx50Lx3F 3.5 10 4 50
4.0x11x4Dx50Lx3F 4 11 4 50
3.0x8x6Dx50Lx3F 3 8 6 50
3.5x10x6Dx50Lx3F 3.5 10 6 50
4.0x11x6Dx50Lx3F 4 11 6 50
4.5x13x6Dx50Lx3F 4.5 13 6 50
5.0x13x6Dx50Lx3F 5 13 6 50
5.5x13x6Dx50Lx3F 5.5 13 6 50
6.0x15x6Dx50Lx3F 6 15 6 50
7.0x16x8Dx60Lx3F 7 16 8 60
8.0x20x8Dx60Lx3F 8 20 8 60
9x20x10Dx75Lx3F 9 20 10 75
10x25x10Dx75Lx3F 10 25 10 75
11x25x12Dx75Lx3F 11 25 12 75
12x30x12Dx75Lx3F 12 30 12 75
14x35x14Dx100Lx3F 14 35 14 100
16x40x16Dx100Lx3F 16 40 16 100
18x45x18Dx100Lx3F 18 40 18 100
20x45x20Dx100Lx3F 20 45 20 100





4 flute square carbide end mill

Type Blade diameter Blade length Shank diameter Total length
1.0x3x4Dx50Lx4F 1 3 4 50
1.5x4x4Dx50Lx4F 1.5 4 4 50
2.0x6x4Dx50Lx4F 2 6 4 50
2.5x8x4Dx50Lx4F 2.5 8 4 50
3.0x3x4Dx50Lx4F 3 8 4 50
3.5x10x4Dx50Lx4F 3.5 10 4 50
4.0x11x4Dx50Lx4F 4 11 4 50
3.0x8x6Dx50Lx4F 3 8 6 50
3.5x10x6Dx50Lx4F 3.5 10 6 50
4.0x11x6Dx50Lx4F 4 11 6 50
4.5x13x6Dx50Lx4F 4.5 13 6 50
5.0x13x6Dx50Lx4F 5 13 6 50
5.5x13x6Dx50Lx4F 5.5 13 6 50
6.0x15x6Dx50Lx4F 6 15 6 50
7.0x16x8Dx60Lx4F 7 16 8 60
8.0x20x8Dx60Lx4F 8 20 8 60
9x20x10Dx75Lx4F 9 20 10 75
10x25x10Dx75Lx4F 10 25 10 75
11x25x12Dx75Lx4F 11 25 12 75
12x30x12Dx75Lx4F 12 30 12 75
14x35x14Dx100Lx4F 14 35 14 100
16x40x16Dx100Lx4F 16 40 16 100
18x45x18Dx100Lx4F 18 40 18 100
20x45x20Dx100Lx4F 20 45 20 100



Square end mills of other blade diameter and length are possible as per customers’ requirement.



Applications



1. Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc



Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling 1



Solid Tungsten Carbide 2/4/6 Flute End Mill Cutter / Router Bit For Milling 2
